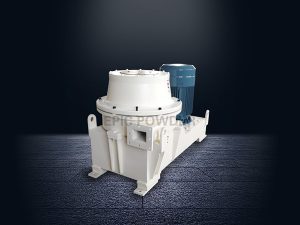

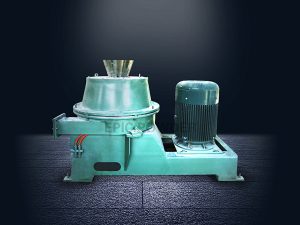

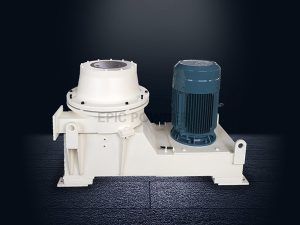

Working Principle Of Turbo Mill
The Turbo Mill is a dry processing mill that goes a step beyond just impacting and shearing. It obtains your desired particle size by the impact from the high-speed rotation of blades and the high-speed vortex flow generated behind them. The Turbo Mill produces less fines than the jet mill resulting in a sharp particle size distribution, and it consumes less energy.

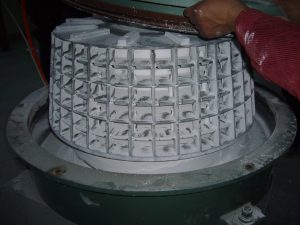

The tapered rotor and stator are adopted, and the gap between the rotor and the stator can be adjusted; the powerful vortex flow field, the linear speed of the rotor can reach 120 m/s, which is especially suitable for the dispersion, reduction and crushing of agglomerated materials. The material is impacted, sheared and rubbed at high speed between the rotor and the stator to complete the grinding and coating process.
Advantages of Turbo Mill
- Simple and solid design with no internal screens makes maintenance easy and promises nearly permanent and trouble-free operation.
- Easy to open upper casing makes cleaning, maintenance and inspection simple.
- The height and the installation area relative to throughput is less than other machines.
- Fineness: 50 ~ 2500Mesh. (data is for reference only & may vary according to raw material)
Technical parameters of horizontal Turbo Mill
| Model | 300 | 500 | 750 | 1000 | 1250 |
|---|---|---|---|---|---|
| Fineness (mesh) | 50 - 2500 | 50 - 2500 | 50 - 2500 | 50 - 2500 | 50 - 2500 |
| Speed (m/s) | 100 - 120 | 100 - 120 | 100 - 120 | 100 - 120 | 100 - 120 |
| Power（kw） | 22 | 45 | 75 | 110 | 132 |
| Blade (layer) | 4 | 4 | 6 | 6 | 6 |
Which Companies Have Chosen Our Turbo Mill
Epic Powder’s Calcium Carbonate Grinding Plant Helps Libyan Client Efficiently Process 1200-Mesh Powder
Epic Powder Empowers Indian Client in Ultrafine Grinding of Steel Slag for High-Activity Mineral Powder Production
Feldspar Ultra-Fine Grinding and Classifying Production Line in Turkey
What else you need to know about pin mill
