Powder coating machine

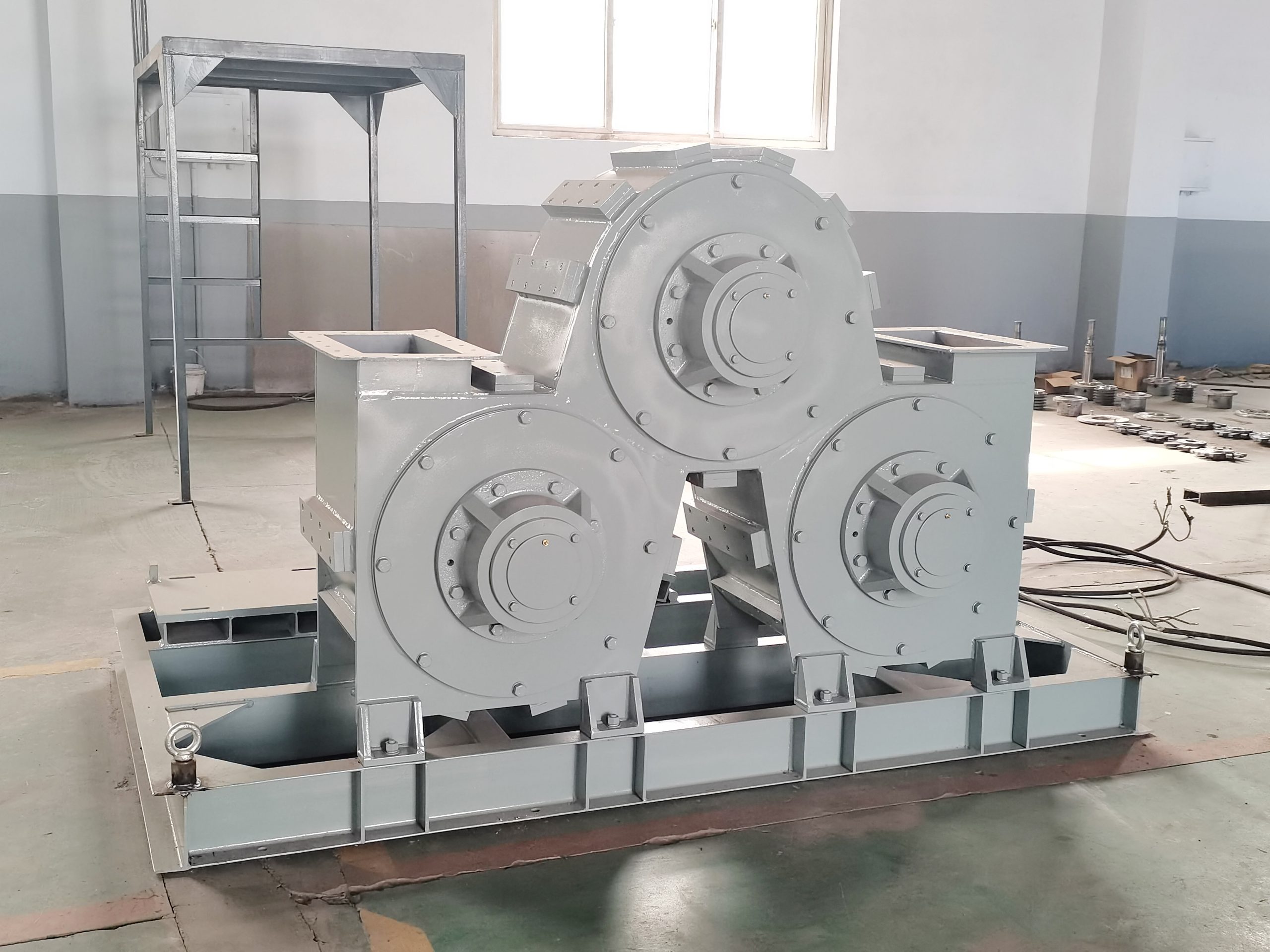

Three-Roller Coating Machine

  • Coating the powder surface by changing the cyclone vortex
    • Realize powder surface modification by changing inner vortex with three rotating rotors.
    • Mature technology, low investment, suitable for stearic acid coating.
    • Self-friction generates heat, no heating device is needed, less auxiliary machine, and low operating cost.
    • Suitable for powder coatings of 325~3000 mesh.
    • Power range: 11kW~225kW; Maximum output: 6t/h.
    • The air volume is small, the dispersibility is poor, especially the fine powder, and the amount of modifier is large.
Get A Quote

    Please prove you are human by selecting the tree

    Contact Us

    Three-Roller Coating Machine Working Principle

    This continuous powder surface coating system is designed on the base of German know how with Chinese equipment, and can be used for coating of various powders like calcium carbonate (GCC, PCC), kaolin, talc, mica, graphite, barium sulfate, white carbon black, magnesium hydrate, zinc oxide, aluminum oxide, and is suitable for a variety of solid/liquid coating agents, like aluminate coupling agent, titanate coupling agent, silane coupling agent and stearic acid.

    Coating machine consists of three units of mixing rooms. High-speed rotation creates great vortex flow inside these special-shaped rooms. Powder and coating agent are mixed in the high-speed gas-solid vortex flows. Coating machine with both surface coating and particle dispersing functions is suitable for various powders with different fineness, and has a unique coating effect for the materials with small apparent specific gravity and high volume to weight ratio.

    Automatic temperature control system ensures stable high temperature for coating agent melting into liquid and mixing with uncoated powder. Heating and cooling of powder and coating agent are completed in one machine, which does not need independent cooling system.

    High utilization ratio of coating agent, high powder-coated rate, high activation grade, low energy consumption, and very few agglomerates in final coated product. The whole system is operated under negative pressure, no dust emission, and low labor intensity.

    Three-Roller Coating Machine Technical Parameters

    Parameter / Model Motor (kW) Speed (RPM) Fineness (Mesh) Capacity (kg/h) Temperature (°C) Coating Rate(%)
    CRM-3 18.5 x 3 4500 325~3000 500~1500 80~120 95~98
    CRM-6 37 x 3 2700 325~3000 1200~3700 80~120 95~98
    CRM-9 75 x 3 2000 325~3000 2000~7500 80~120 95~98

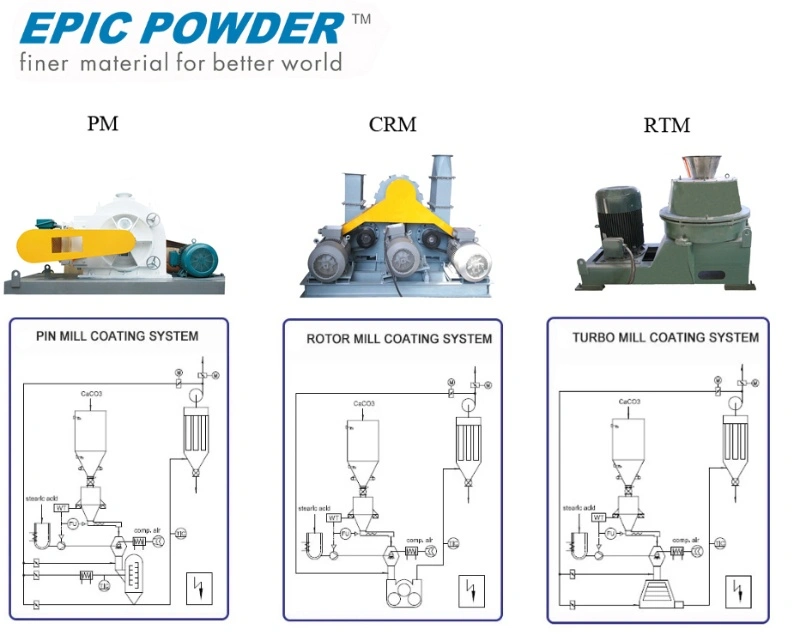

    Flow chart of continuous modification process of three-roller mill modification machine

    Flow chart of continuous modification process of three-roller mill modification machine

    Powder coating modification machine customer case

    calcium carbonate dispersion modification production line

    Talcum Powder modified production line in a mineral factory in Thailand

    Read More →

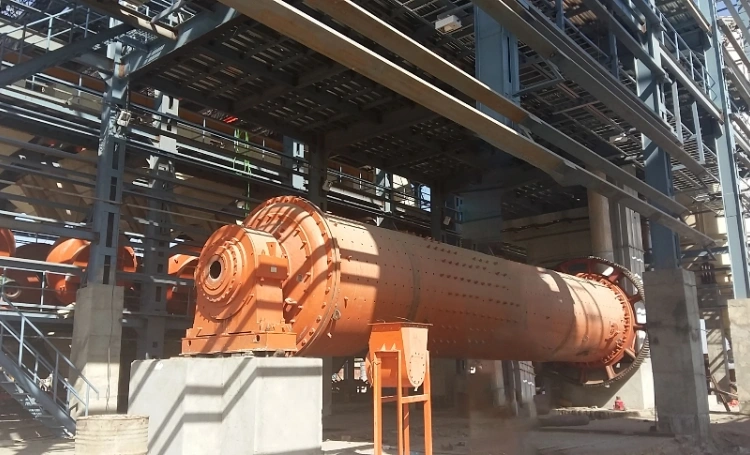

    A heavy calcium carbonate ball mill and grading + modification production line in a mineral factory

    A heavy calcium carbonate ball mill and grading + modification production line in a mineral factory

    This customer is a well-known non-metallic ore processing enterprise in India, and he wants to seek a new coating modification process. Through many peers, he ...
    Read More →

    The latest news of powder coating modification machine

    Industry News

    Application of kaolin in medical field

    Kaolin, as a natural mineral material, has been widely used in the medical field because of its unique physical and chemical properties. The application of ...
    Read More →
    calcium carbonate powder
    Industry News

    The Difference Between Heavy Calcium Carbonate and Light Calcium Carbonate

    Calcium carbonate is a widely used compound with various applications in industries such as construction, paper, plastics, and pharmaceuticals. It exists in different forms, including ...
    Read More →
    ball mill
    Industry News

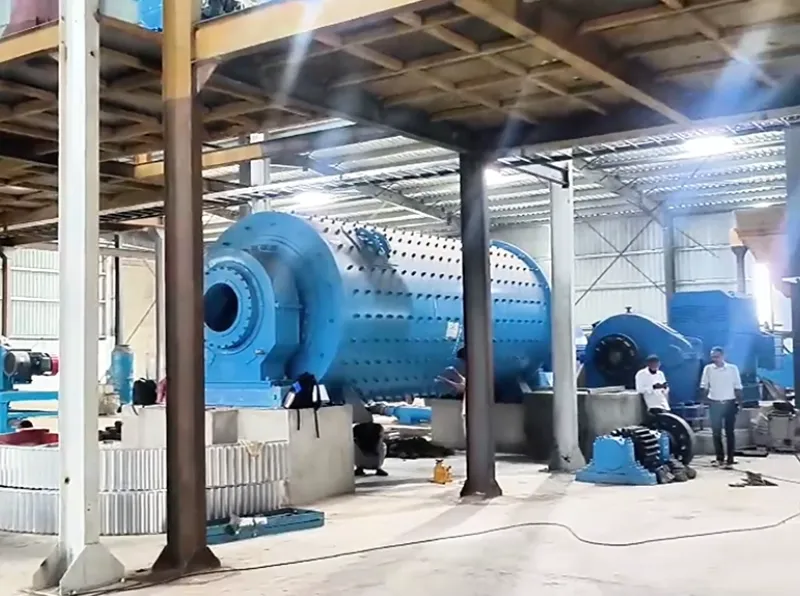

    Is the ultra-fine ball mill classification production line suitable for producing calcium carbonate powder?
