Exploring Innovative Modification Methods and Applications of Black Talc Powder

Black talc powder, an important non-metallic mineral powder material, is widely used in plastics, coatings, rubber, and other industries due to its unique physical and chemical properties. Its surface contains hydrophilic groups and is polar, while resins and other polymers are hydrophobic and non-polar. This difference in chemical structure leads to poor compatibility between talc and polymers. To improve the interface adhesion between talc and resins, talc powder must undergo appropriate modification to achieve uniform dispersion in the resin. This process is essential for improving the performance of talc-filled resins and other polymers.

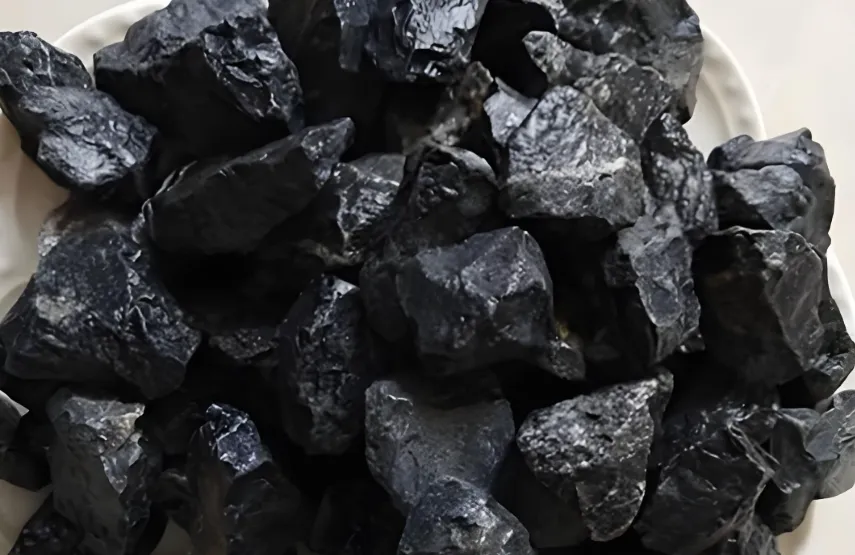

Mineral Composition of Black Talc

Under microscopic examination, the ore is identified as dolomite-talc rock, which appears gray-black or black. After weathering, it becomes light gray or grayish-white, with a slippery feel. The main mineral components are talc and steatite, with traces of quartz, carbonaceous material, calcite, dolomite, and occasionally pyrite, chalcopyrite, hematite, chalcopyrite, and apatite. Talc constitutes 59%-66% of the talc ore, and dolomite, the primary gangue mineral, makes up 20%-25%.

Main mineral content of black talc

Mineral name	Content
Talc	59%~66%
Dolomite	20%~25%
Quartz	13%~ 15%
Calcite	1%

Ore Structure

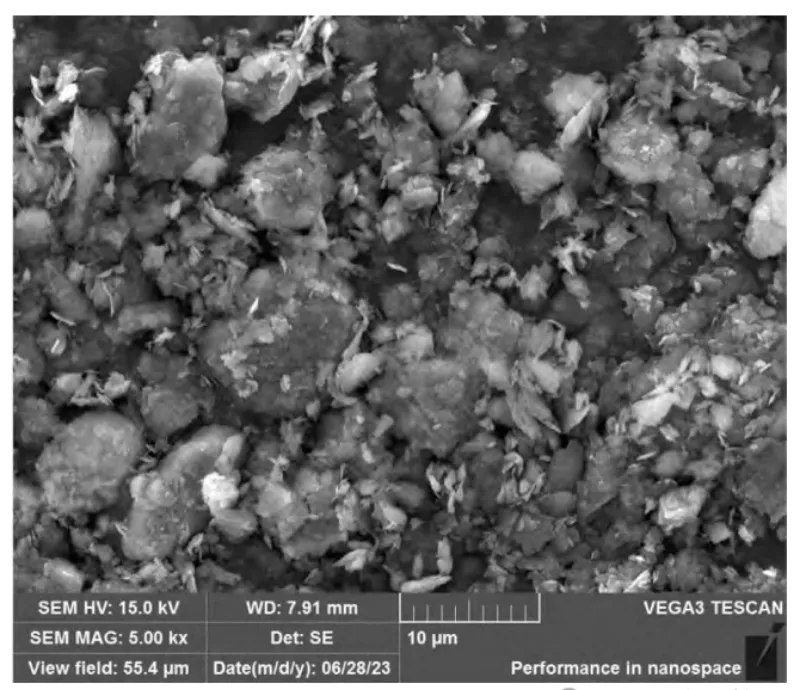

The ore structure mainly includes oolitic and foliated textures, and rare strip-like layering composed of dolomite and oolitic talc. The scanning electron microscope (SEM) image of black talc is shown in Figure 1.

Physical Properties of Black Talc

Black talc is a silicate mineral with a soft texture. It has excellent electrical insulation, heat resistance, and resistance to strong acids and alkalis. It strongly adsorbs oils and fats, providing good lubricity. After calcination, the whiteness of high-quality talc can reach 95%.

Surface Modification Applications of Black Talc Powder

Plastics Industry

Black talc powder is widely used in PP, PE, PVC, ABS, and nylon plastics. It significantly enhances product rigidity, dimensional stability, and lubrication, while reducing wear on molding equipment. Modified black talc powder improves compatibility with polymers, maintaining impact strength while enhancing hardness and creep resistance.

Coatings Industry

Ultrafine black talc powder, due to its large surface area, requires more wetting dispersants and is difficult to disperse, affecting coating performance. However, after surface modification, black talc powder improves its dispersion and compatibility in coatings, significantly enhancing their performance. Additionally, black talc powder acts as a filler and additive, reducing costs and increasing the added value of coatings.

Rubber Industry

Modified black talc powder can replace some of the semi-reinforcing carbon black in rubber, improving the mechanical properties such as tensile strength and elongation. Since talc powder is relatively inexpensive, it helps reduce costs and minimize environmental pollution.

Surface Modification Methods of Black Talc Powder

Coupling Agent Modification

Coupling agents, such as titanates, aluminates, and silanes, are commonly used to improve the compatibility between inorganic fillers and polymers. These agents form chemical bonds with the talc surface and participate in polymerization reactions, enhancing the bond between talc and polymers.

Surfactant Modification

Surfactants alter the charge properties of the inorganic particle surface, improving compatibility with polymers. Specifically common surfactants used in talc powder modification include sodium dodecylbenzenesulfonate and sodium lauryl sulfate. These surfactants transform the talc surface from hydrophilic to hydrophobic, improving its compatibility with polymers.

Mechanical-Chemical Modification

This method involves reducing particle size through grinding or friction, enhancing surface activity. It simplifies the process, reduces costs, and improves dispersion and compatibility between talc powder and polymers.

Coating Modification

Coating involves uniformly covering the black talc powder surface with a polymer, imparting new properties. This process includes activating talc, adsorbing surfactants, and polymerizing monomers to form a surface coating.

Other Modification Methods

Other methods, including localized activation, high-energy surface modification, and precipitation reaction modification, offer different advantages. These methods can be selected based on specific requirements.

Development Directions for Talc Powder

Based on calcined black talc, ceramic products can be developed. Black talc powder contains both talc and carbon, both of which serve as reinforcing agents for rubber. Carbon black is the most effective reinforcement material during rubber vulcanization. Therefore, developing black rubber products, such as dredging pipes, conveyor belts, and tires, based on talc powder is feasible. Talc blocks, which have conductive and thermal properties, can be applied in electromagnetic shielding and energy storage. Talc, with its high silicon and magnesium content, can be purified to extract silicon and magnesium for high-tech industries. Additionally, talc can be used in composite inorganic pigments and various industries like plastics and coatings.
