Enhancing Ball Mill Efficiency: Key Factors to Consider

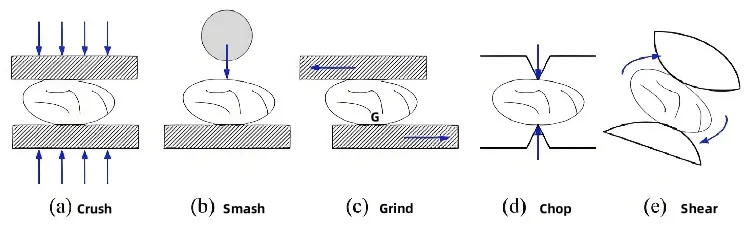

Observing and analyzing particle impact crushing behavior reveals a very complex physicochemical process. From another perspective, the crushing process is also a mechanical process. Based on the crushing method, it can be divided into several main types: compression, impact, grinding, splitting, and shearing. Enhancing ball mill efficiency is crucial for optimizing grinding operations in various industries. By adjusting parameters such as grinding media size, mill speed, and feed rate, operators can improve the mill’s performance. Additionally, using advanced monitoring techniques and controlling particle size distribution can lead to higher throughput and reduced energy consumption. Enhancing ball mill efficiency ultimately results in cost savings and better product quality.

Ball Mill Principle

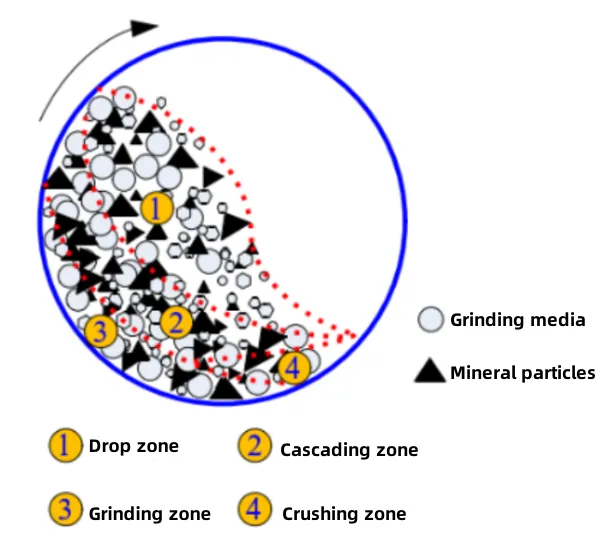

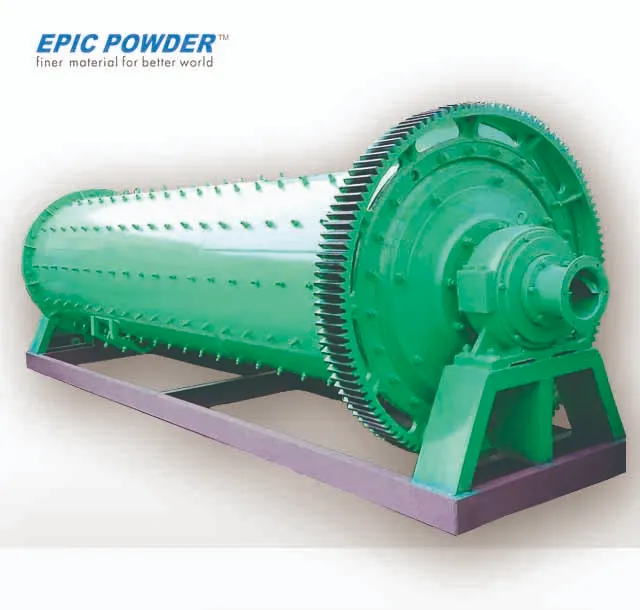

The ball mill crushes mineral materials using both impact and grinding methods. The drum rotates around its axis, driven by the motor and transmission, supported by static bearings. The drum walls are lined with lifter bars, and the drum contains grinding balls and materials. Friction and lifter bars lift the grinding balls and materials to a certain height. Some high-speed materials and grinding balls fall back to the bottom of the drum, where the impact crushes the materials. The slower-moving materials and grinding balls slide along the drum, where grinding balls mainly use abrasion to grind the materials.

The fundamental reasons affecting the grinding efficiency of ball mill

The primary particle breakage methods inside a ball mill are a combination of impact and grinding, resulting in multi-layer particle breakage. During the grinding process, particles inside the drum typically exist in multi-layer agglomerated forms. Multi-layer particle breakage is much more complex than single-particle breakage. Considering the distribution characteristics of multi-layer particle breakage, the layering phenomenon within the particle group inside the mill is a key reason for the low crushing efficiency of the mill.

Factors affecting ball mill grinding efficiency

The grinding process in a ball mill is a complex physicochemical process. In ball mill operations, factors such as media quantity, strength, hardness, and diameter, along with the shape, number, height, hardness, and angle of the liners, create complex interrelationships. Additionally, the filling rate, speed, and grinding concentration also influence the milling effect. These factors collectively have a significant impact on the grinding efficiency of the ball mill.

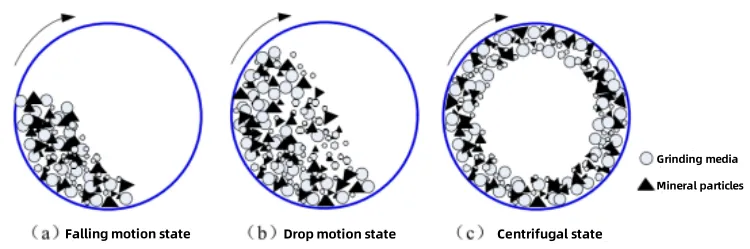

Movement law of ball mill grinding media

At lower mill speeds, the grinding media fall. As the media move upwards with the drum, they reach a certain height. Then, they roll down along the surface of accumulated media. The accumulated media rub against each other, while the rolling media exert slight impact forces. Therefore, the grinding action during the falling motion mainly involves grinding, with impact playing a secondary role.

As the mill speed increases, the grinding media perform a throwing motion. The media move upwards with the drum and reach a certain height, then fall with a certain velocity. Therefore, the grinding action during the throwing motion is primarily impact, with grinding playing a secondary role.

At higher mill speeds, the grinding media perform a centrifugal motion. The media rotate with the drum, and there is no relative motion between the media and the liners, or between the media themselves. Therefore, no grinding action occurs during centrifugal motion.

Ball mill useful power

The useful power of a ball mill typically refers to the energy that the liners consume to lift the grinding media and cause grinding action. This includes power for the drum, grinding media, mineral particles, and end caps. The magnitude of the power mainly depends on the mass of the media, speed, and motion state. However, the transmission process dissipates a large portion of the effective power as heat, sound, and vibration, leaving only a small fraction effectively utilized.

Effect of ball mill speed and filling rate on power

The theoretical predicted values of useful power for a ball mill under different filling rates vary with the rotational speed. The useful power increases with the speed, then decreases as the speed continues to rise. It also increases as the filling rate increases. The maximum useful power under different rotational speeds occurs when the filling rate is between φ = 81% and 83%.

Conclusion

Ball mill grinding efficiency is affected by many factors. These include the motion of the grinding balls, speed, ball size, material level, and use of grinding aids. All these factors are interrelated. Among them, some directly address the essence, while others are misleading illusions. Ultimately, enhancing ball mill efficiency not only boosts grinding performance but also contributes to energy savings and better resource utilization in industrial processes.
