Ball Mill in Mineral Processing: Key to Efficient Size Reduction and Liberation

The ball mill is the “heart” of an ore beneficiation plant. Its core function is to further crush the ore after it has been broken down, allowing valuable minerals to be “liberated” from gangue minerals. This prepares the ore slurry with the appropriate particle size and concentration for subsequent separation operations (such as flotation, magnetic separation, etc.).The ball mill in mineral powder processing ensures efficient particle size reduction and optimal mineral liberation, which are essential for the success of downstream separation techniques.

Here’s a detailed breakdown of its role:

Core Function: Crushing and Liberation

This is the most fundamental and important role of the ball mill.

• Physical Crushing (Size Reduction):

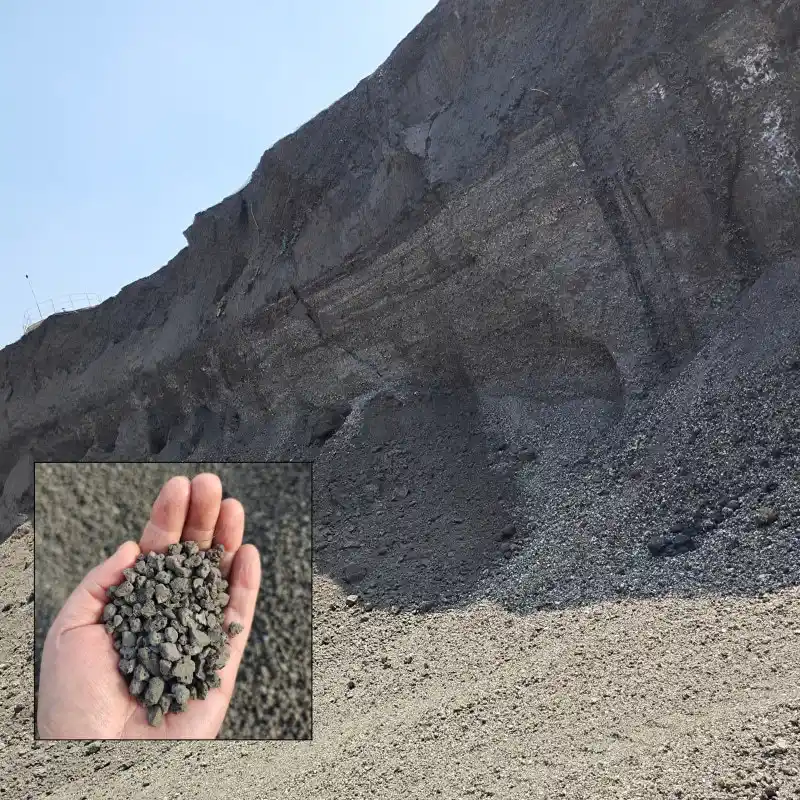

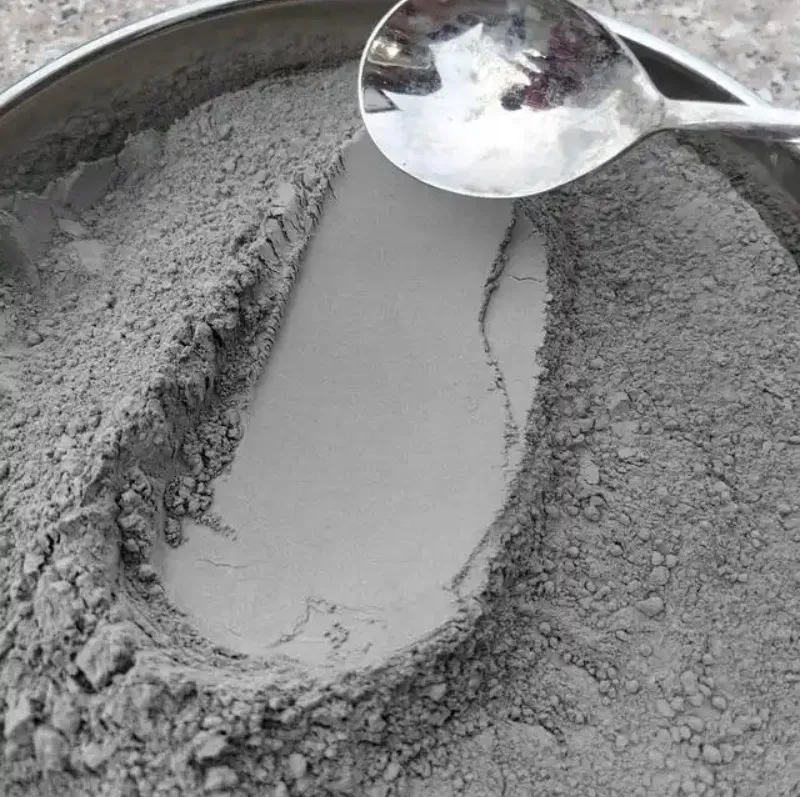

  Ball mills receive ore from the crushing stage, typically with a particle size of 10–20 mm. As the mill rotates, the grinding media (steel balls, rods, etc.) are lifted to a certain height and then fall, using their impact and grinding force to crush the ore. This process reduces the particle size to the millimeter or even micrometer level (usually 0.074 mm to about 0.2 mm).
• Mineral Liberation:
  In nature, valuable minerals (like copper, iron, gold, etc.) and gangue minerals are often tightly interwoven. Without reducing the particle size significantly, these minerals cannot be separated. The grinding action of the ball mill breaks these interlocked particles along the mineral grain boundaries, releasing the target mineral from composite particles. This process is known as “liberation.”

Liberation degree is a key indicator of milling efficiency. Only with sufficient liberation can valuable minerals be efficiently concentrated into the concentrate during subsequent selection processes. Otherwise, they will be lost in tailings, causing resource wastage.

Preparing Feed for Separation Operations

The ball mill is not only a crushing device but also a “preparation workshop” for the entire beneficiation process.

Control of Particle Size:
Different separation methods have strict requirements on feed particle size.

• Flotation: Typically requires particle sizes between 0.01 mm and 0.3 mm. If the particles are too coarse, they won’t float properly; if too fine (over-grinding), it increases reagent consumption and makes recovery harder.
• Magnetic Separation / Gravity Separation: These methods also have specific particle size requirements.
  Ball mills, in conjunction with classification equipment (such as spiral classifiers and hydrocyclones), form a closed-circuit system, precisely controlling the particle size to meet the best conditions for subsequent operations.

Adjusting Slurry Concentration:
During grinding, water is added to form a mixed slurry. The concentration of the slurry after grinding needs to be adjusted to the optimal range for subsequent separation. For example, flotation typically requires a slurry concentration of 25%–45%. The slurry concentration exiting the ball mill serves as the basis for further water and reagent adjustments.

Working Process of the Ball Mill in mineral powder processing

A ball mill typically operates in a closed-loop circuit with a classification system. The process clearly reflects its role:

• Feeding: Crushed ore (with a certain proportion of water) is fed into the ball mill.
• Grinding: The mill rotates, and the steel balls and ore are lifted to a certain height before falling. This impact and grinding crushes the ore.
• Discharge: The ground slurry is discharged from the opposite end of the mill.
• Classification: The discharged slurry enters a classification device (like a hydrocyclone). Qualified fine particles (overflow) are sent to separation operations (like flotation).
• Recycling: Coarse particles (underflow) are returned to the mill for further grinding.
  This process forms a continuous closed-loop cycle to ensure the final product meets the required particle size.

Summary

The ball mill plays a core role in ore beneficiation, serving as a bridge between crushing and separation processes. Its specific roles can be summarized as follows:

• Crushing: Reduces ore to smaller particles.
• Liberation: Breaks apart useful minerals from gangue minerals, enabling separation.
• Preparation: Adjusts the slurry to the appropriate particle size and concentration for subsequent separation operations.
• Standardization: Controls particle size through closed-circuit classification to meet the requirements of downstream processes.

Thus, the efficiency and operational status of the ball mill are key indicators of a beneficiation plant’s technological and management levels. Optimizing its operation is a focal point in the ore beneficiation industry.
